For use with Highbay, Wall Packs, Flood Lights or installing at AC junction point for multiple fixtures.

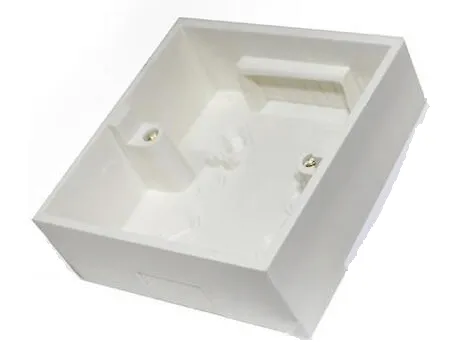

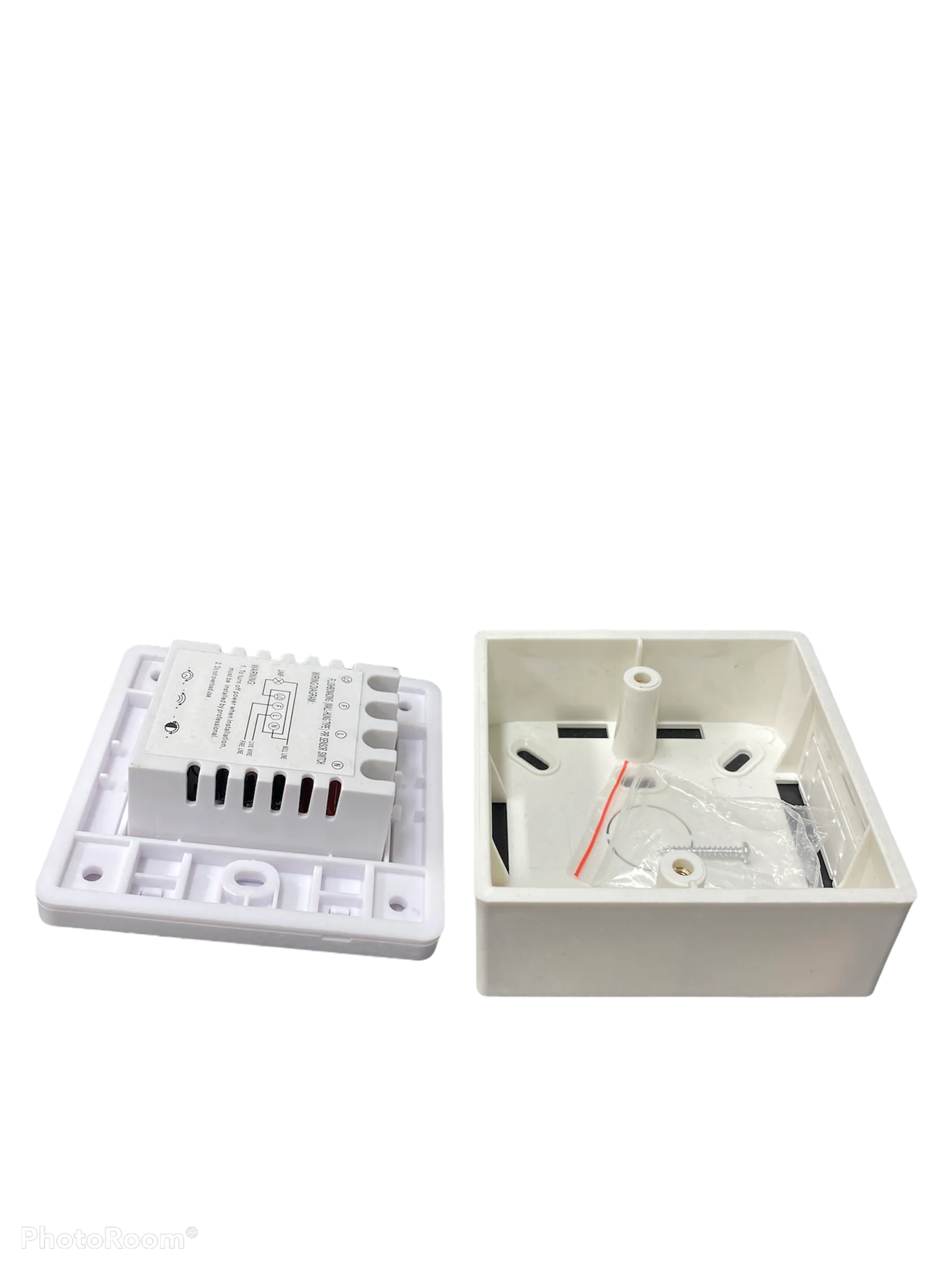

Surface Mount Junction Box Included

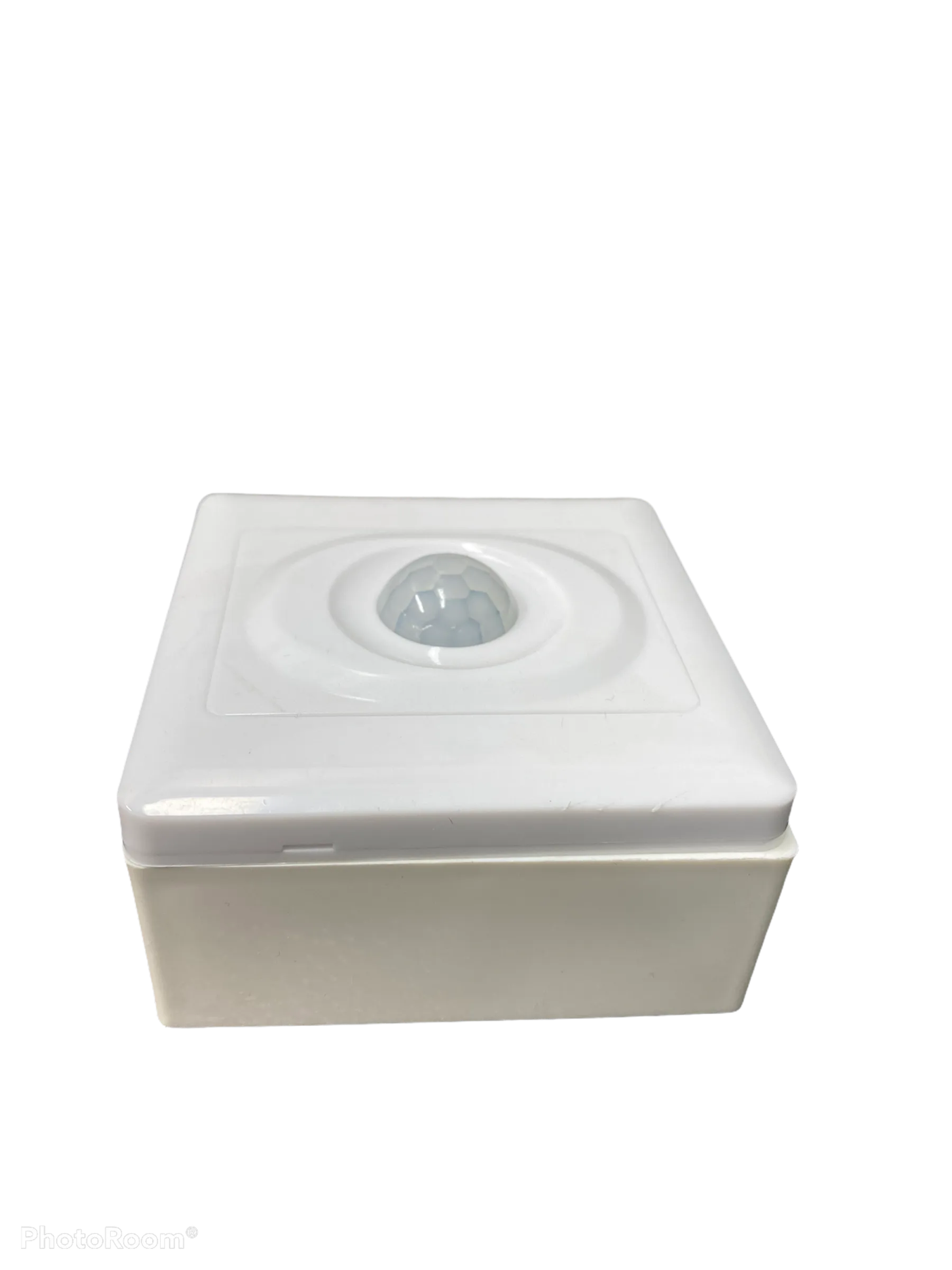

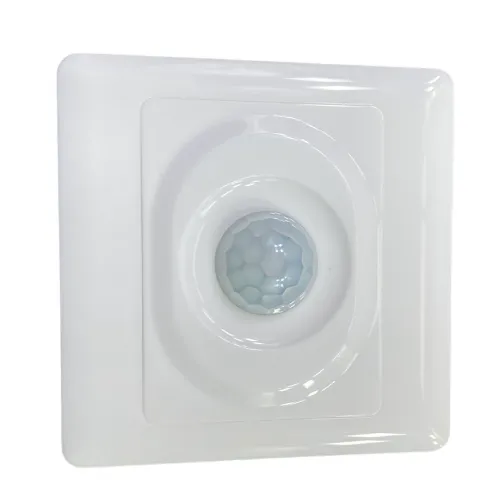

✔ The PIR Heat Sensor provides an easy upgrade in the ability to detect movement! This PIR motion sensor can be easily wired to fixtures for added functionality and security in your warehouse, garage, shop, and more.
✔ SUPERIOR DETECTION - With a detection range of 26ft (8m) and a maximum height of 26ft (8m), the microwave radar motion sensor can detect motion at any angle across large indoor areas with high ceilings and mounting heights.
✔ ADJUSTABLE SETTINGS - This motion sensor light switch features sophisticated, adjustable settings including a daylight feature, standby dimming level, standby period, and hold time. Plus, with dimming capabilities and light control for 50-200Lux, you can customize your sensor to fit your operational needs.
✔ COMMERCIAL GRADE - This microwave motion sensor is designed to be durable and reliable for all commercial and industrial applications. A life span of 45,000 hours ensures long-lasting motion detection.
Technical Parameters:
- Size: 86mm * 86 mm
- working voltage:AC90-150V 50HZ
- Load power:Incandescent≤1000W,Energy saving lamp, LED≤200W
- Illumination:5LUX~5000LUX (default 5LUX)

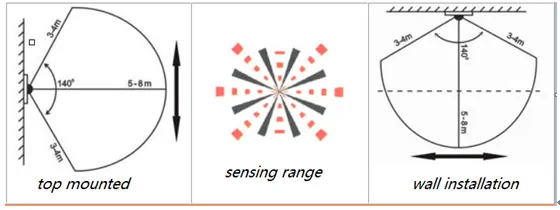

- Induction distance:2~12M (default 5~8M)
- Delay time:15~300second (default 20~30second)
- Sensing angle:110~140 degree
- Ambient temperature: -20 ℃ ~ 45 ℃
- Load range: all the lamps ,exhaust fan
- Output: relay
- Method of induction: passive pyroelectric infrared
